Détails sur le produit:
|
| Punch station: | 5 | Tooling standard: | ZP Tooling |
|---|---|---|---|
| Max Main Pressure: | 60KN | Max diameter: | 18mm |
| Max Thickness of Tablet: | 6mm | Max Filling Depth (mm): | 15mm |
| Max Turret Rotation Speed: | 30rpm/min | Machine Weight: | 260kgs |
| Application: | Rotary Tablet Press used in the pharmaceutical industry |

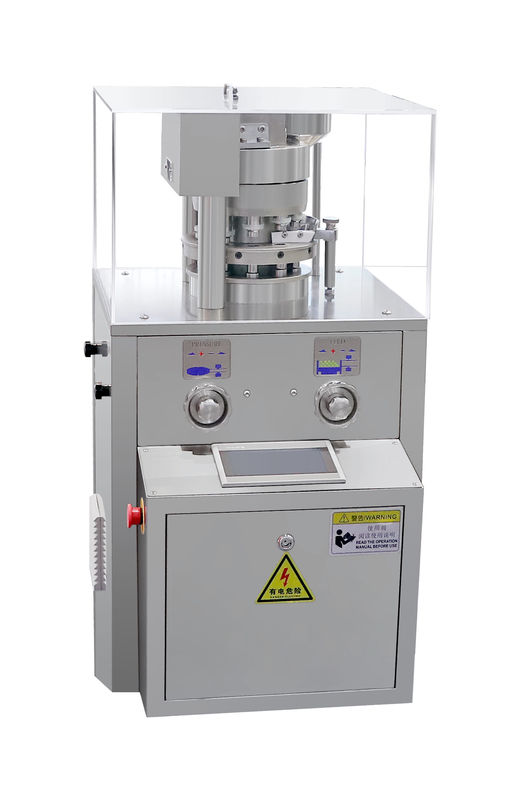

ZP5 Rotary Tablet Presss Machine Gravity Feeder GMP standard
ZP5 Rotary Tablet Presss Machine Gravity Feeder GMP standard Quick Detail
- GMP standard
- Good quality and rotation speed
- Continuous automatic tablet press
Main Application:
The ZP130 Series Rotary Tablet Press is a new generation product developed by our factory. This machine is a single roller, continuous automatic tablet press designed for producing various shapes and plain tablets. It is primarily used in the pharmaceutical industry but is also applicable in the chemical, food, and electronics industries.
Characteristics:
1. Design of GMP.
2. High quality all stainless steel constructions.
3. Reliable safety sealing system and dust-proof system.
4. High visibility isolated door to prevent cross contamination.
5. Easily removable parts for quick maintenance.
Main Technical Specifications:
| Model | ZP-5A/5B | ||
| Punch Type | ZP | ||
| Numbers of Punch Stations | 5 | ||
| Max Pressure (kN) | 60 | ||
| Max Tablet Diameter (Round shape, mm) | 13/18 | ||
| Max Filling Depth (mm) | 15 | ||
| Max Thickness of Tablet (mm) | 6 | ||
| Max Turret Rotation Speed(r/min) | 30 | ||
| Max Production Capacity (tablets/hour) | 9,000 | ||
| Electrical Supply Parameters | 2.2kw, 220V,1P/380V,3P | ||
| Dimensions (mm) | 480*630*1020 | ||
| Weight (kg) | 260 | ||
Exhibition Center
Our servies
Guarantee:
12 months for the whole machine. Within 12 months under normal use and maintenance, if something is wrong with the machine, you will get spare part for free. Out of 12 months, you will get spare parts at cost price. You will also get technical support and service all the lifetime.
Technical support:
1, Technical support by phone, email or MSN/Skype around the clock
2, Friendly English version manual and operation video CD disk
3, Engineer available to service machinery overseas
After sales services:
Normal machine is properly adjusted before dispatch. You will be able to use the mchines immediately.
You will be able to get free training advice towards our machine in our factory. You will also get free suggestion and consultation, technical support and service by email/fax/tel and lifetime technical support.
