| Contrôle qualité: | Essai avant la livraison | Tension: | 380 V / 50Hz |
|---|---|---|---|
| Système de contrôle: | CLu | Nombre de stations: | 45 |
| Appliquer à la forme: | Rond, carré ou en forme spéciale | Application: | Produits pharmaceutiques, produits chimiques, produits alimentaires, etc. |
| Poids: | 4300kg | Fonctionnalité: | Efficacité de travail élevée |
| Garantie: | 1 an | Épaisseur de comprimés maximaux: | 10 mm |
| Forme de tablette: | Cuostomized | ||
| Mettre en évidence: | automatic high speed tablet press,chemical tablet press machine,foods tablet press with warranty |
||
| Quality Control | test before delivery |
| Voltage | 380V/50Hz |
| Control System | PLC |
| Number Of Stations | 45 |
| Apply To Shape | Round,square,or special-shaped |
| Application | Pharmaceutical, Chemical, Food, etc. |
| Weight | 4300kg |
| Feature | High Working Efficiency |
| Warranty | 1 Year |
| Max Tablet Thickness | 10mm |
| Tablet Shape | Customized |
| Model | GZPK-45 | GZPK-55 | GZPK-65 | GZPK-71 |
|---|---|---|---|---|
| Number of Stations | 45 | 55 | 65 | 71 |
| Tooling Standard | D | B | BB | BBS |
| Max Main Pressure (KN) | 100 | |||
| Max Pre-pressure (KN) | 20 | |||
| Max Tablet Diameter (mm) - round tablet | 25 | 18 | 13 | 11 |
| Max Tablet Diameter (mm) - irregular tablet | 25 | 19 | 16 | 13 |
| Max Filling Depth (mm) | 20 | 18 | 15 | 15 |
| Max Tablet Thickness (mm) | 8 | 7 | 6 | 6 |
| Max Turret Speed (r/min) | 70 | |||
| Max Production Capacity (pcs/h) | 378000 | 462000 | 546000 | 596400 |
| Motor Power (kw) | 11 | |||
| Overall Size (mm) | 1530*1250*1900 | |||
| Machine Weight (kg) | 4300 | |||

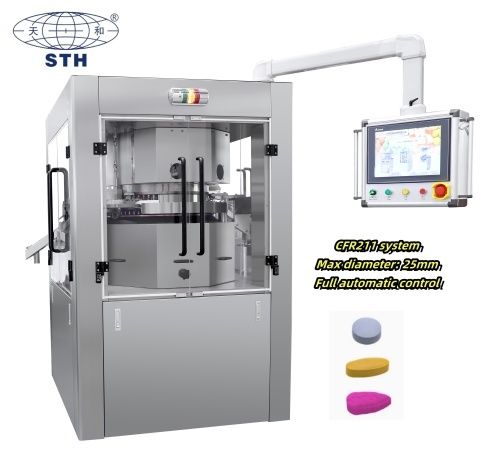

This machine is one kind of double side rotary tablet press machine, which can press granular materials into round shape tablet, irregular tablet or double-side engraved tablet.
This machine is mainly used in pharmaceutical, chemistry, foodstuff, electronic industries.
SHANGHAI TIANHE PHARMACEUTICAL MACHIENRY CO.,LTD (STH) was founded in 1992. The company is located in Chongming island Shanghai,China. In the 40 years since its establishment, STH has successfully achieved an extraordinary leap based on the strategy of "brand-opening and terminal-oriented". Development and become a mature enterprise in the tablet press machine industry in one fell swoop.
STH mainly produces tablet press machine, packing machine, processing equipment suitable in Pharmacy, Foods, Chemical industry. And has independent large-scale research and development institutions in the same industry in China, a complete manufacturing system and a huge marketing service network. It is an international manufacturing company integrating R&D, manufacturing, marketing and service.
STH's machines have been sold all over the world (70 countries), such as: Europe, Canada, New Zealand, Southeast Asia,Pakistan, Iran, Algeria etc. The quality of the products has been significantly improved in Pharmacy, Foods, Chemical industry, and they are favored by customers at home and abroad.
Company mission: focus on quality and service
Warranty: Our machine is under warranty for 12 months. Most components are free-replacement warranty,but the client needs to pay the DHL fee. Artificial and thunder strike damage is beyond the scope of the warranty. Spare parts are not in the warranty time.
After Sales Service: Our engineer is available to provide after sales service oversea. Customers need to afford the visa, tickets, accommodation, hotel and 100 USD per day.
Technical Support: We will be a consultant for clients about the technical problem before order, provide drawing specification, design customized project, analyze and solve technical problem.
Operation Training: We are pleased to receive client's technician to our factory and learn the operation course, take photo, video.
